Welded Wire Mesh
Manufacturer, supplier and exporter of welded wire mesh and metal perforated sheets from Palghar, Maharashtra, India.
Welded Wire Mesh
We manufacture, supply and export welded wire mesh from Palghar, Maharashtra, India. Our mesh is used in construction, window and safety guards, decorative work, fencing, cages, enclosures, farms, gardens and agricultural applications.
Weld Mesh Material
- Stainless Steel
- Mild Steel
- Galvanized Steel
Wire Mesh Material
- Stainless Steel
- Mild Steel
- Galvanized Steel
- Copper
- Hastelloy
- Aluminium
- Brass
Product Gallery

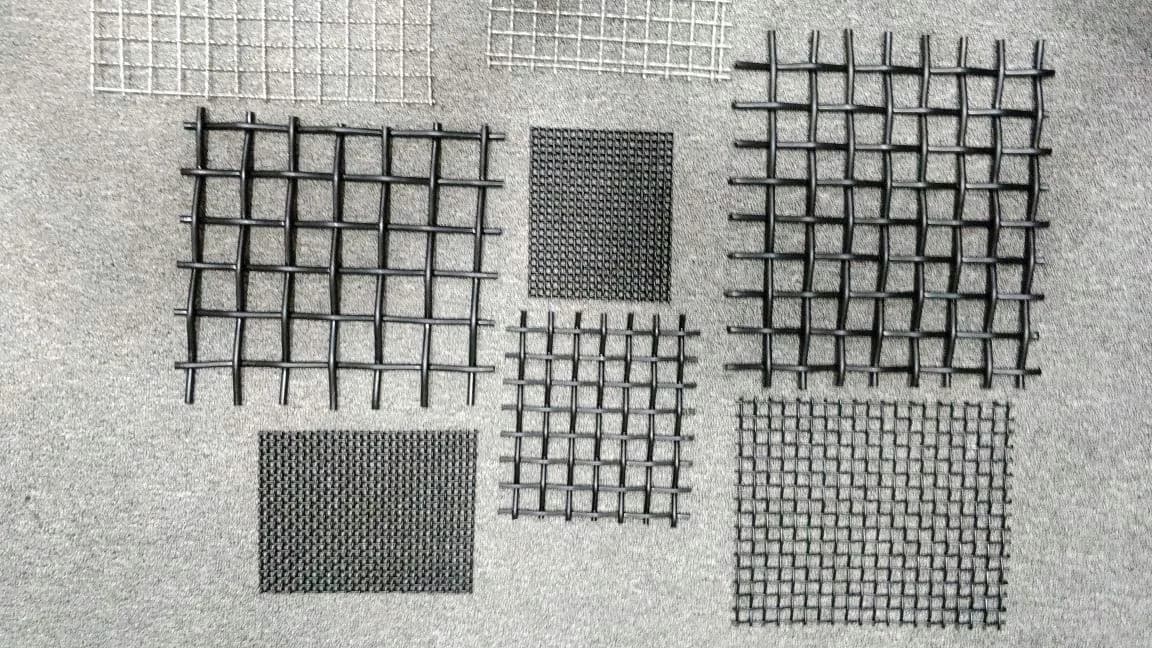

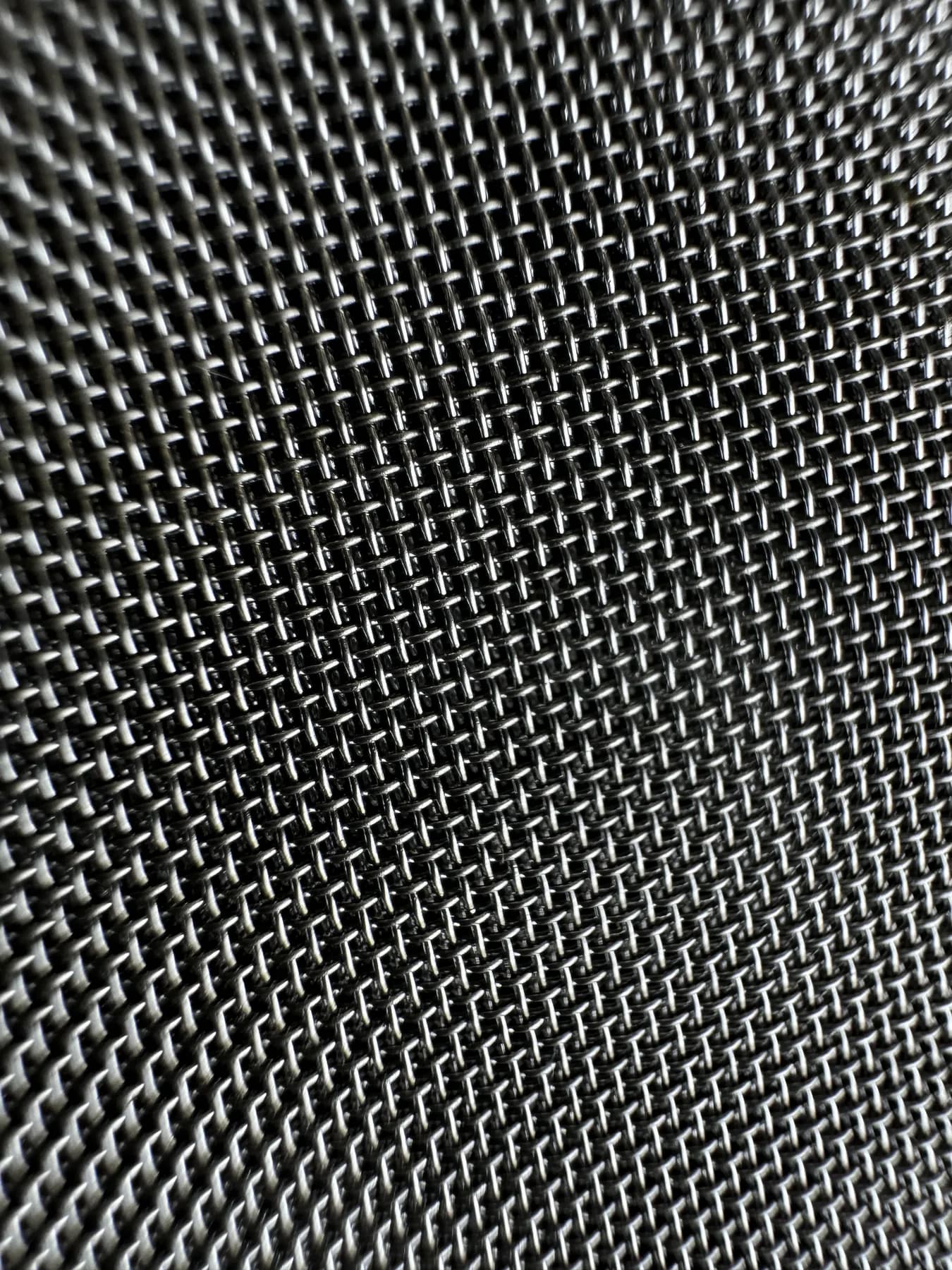

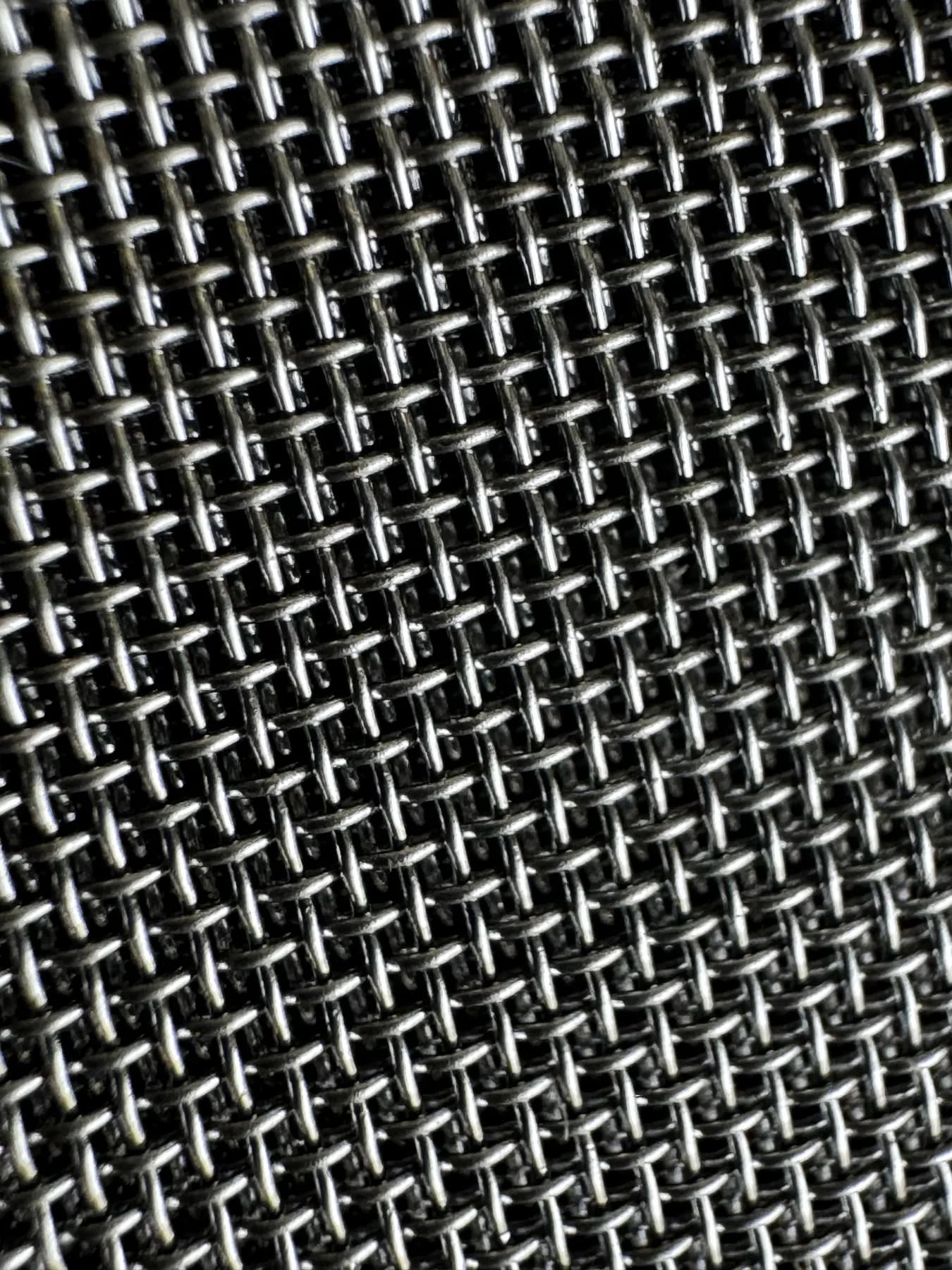

4 photosWelded Mesh in detail
Specification List of Welded Wire Mesh
| Opening | Wire Diameter | In Inch | In mm |
|---|---|---|---|
| 1/2" × 1/2" | SWG 19 to SWG 18 | 1/2" × 1/2" | 12.7 mm × 12.7 mm |
| 5/8" × 5/8" | SWG 19 to SWG 16 | 5/8" × 5/8" | 16 mm × 16 mm |
| 1" × 1" | SWG 15 to SWG 10 | 1" × 1" | 25.4 mm × 25.4 mm |
| 1" × 2" | SWG 15 to SWG 10 | 1" × 2" | 25.4 mm × 50.8 mm |
| 1 ¼" × 1 ¼" | SWG 15 to SWG 10 | 1 ¼" × 1 ¼" | 32 mm × 32 mm |
| 1 ¼" × 3" | SWG 14 to SWG 10 | 1 ¼" × 3" | 32 mm × 75 mm |
| 1 ½" × 1 ½" | SWG 14 to SWG 8 | 1 ½" × 1 ½" | 40 mm × 40 mm |
| 2" × 2" | SWG 14 to SWG 6 | 2" × 2" | 50.8 mm × 50.8 mm |
| 3" × 3" | SWG 14 to SWG 6 | 3" × 3" | 76 mm × 76 mm |
| 4" × 4" | SWG 14 to SWG 6 | 4" × 4" | 101 mm × 101 mm |
Technical Notes
- Standard roll length: 50 feet.
- Width available: 2, 3, 4 and 5 feet.
- Custom sizes are available on request.
Need a custom welded mesh solution?
Send us your specifications for a prompt, tailored quote.
